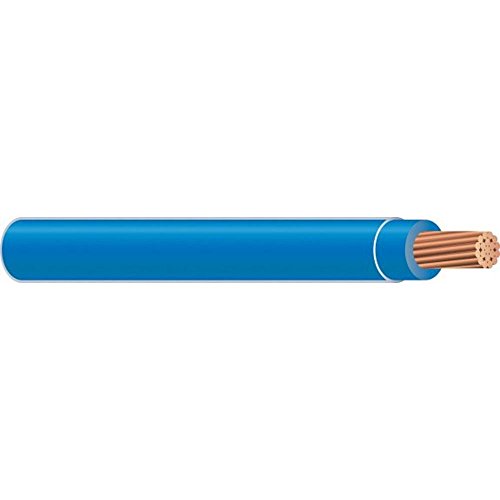

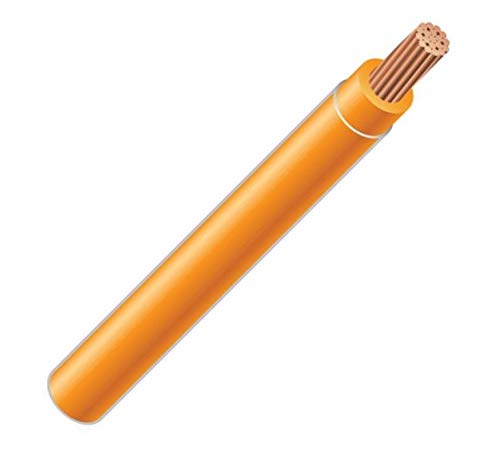

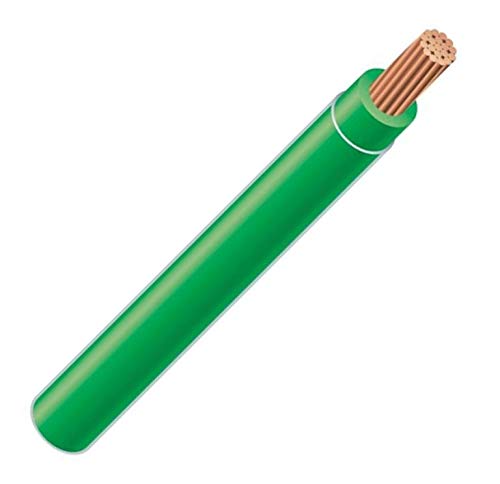

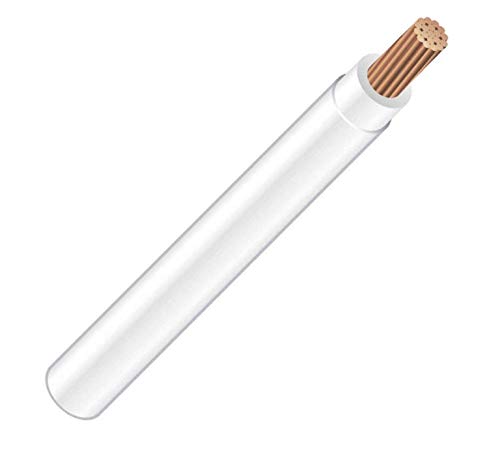

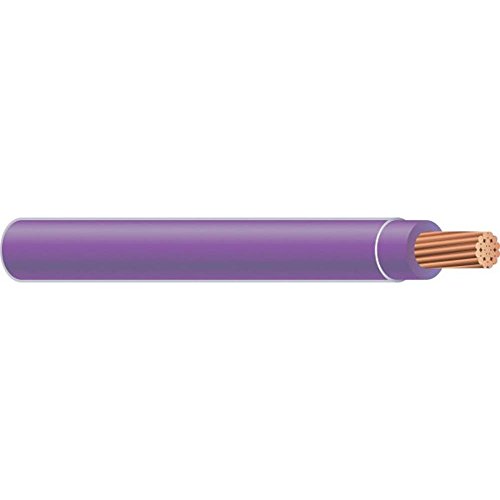

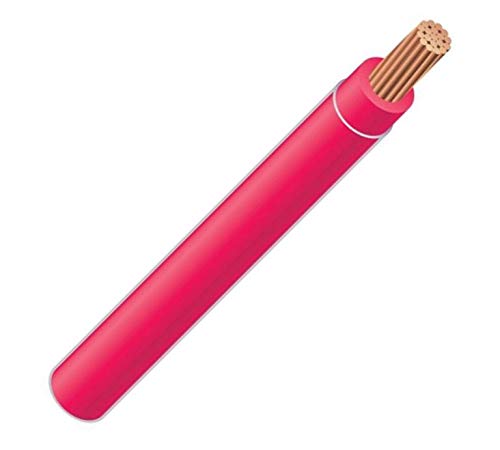

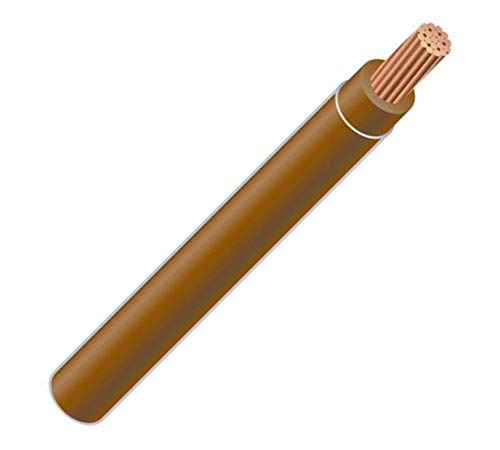

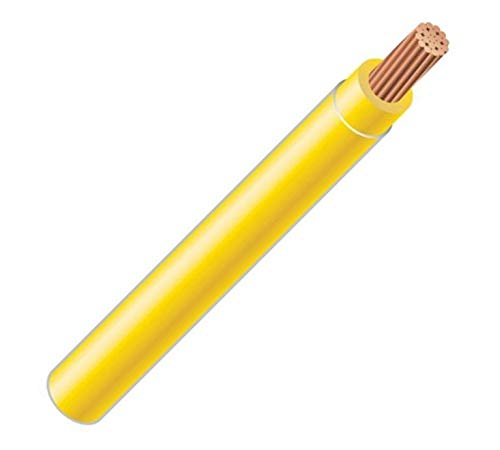

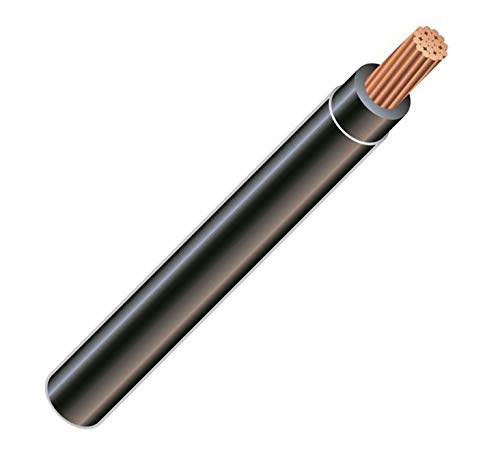

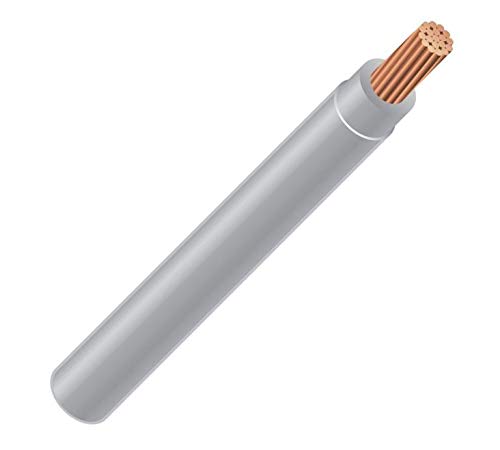

Applications:Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.Features: - Nylon outer jacket for easy pulling and rated gasoline and oil-resistant II. - A tough, polyamide, Nylon outer jacket per UL-1063 and UL-83 - Can be used in wet and dry locations - UL listed, CSA certified and RoHS compliantStandards: - Underwriters Laboratories Standards UL-83, UL-1063 and UL-758 - AWM Spec 1316, 1317, 1318, 1319, 1320 and 1321 - ASTM Stranding Class B3, B8, B787 - Federal Specification A-A-59544 Canadian Standards Association C22.2 No. 75 - NEMA WC70/ICEA S-95-658 - Institute of Electrical and Electronics EngineersConstruction:Conductors:Solid, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8Insulation:Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compount per UL-1063 and UL-8Specifications:Size:14 AWGNumber of Strands:19Cross Section Area (mm2):2.08Nylon Jacket Thickness:0.100 mm / 0.004 inchesOutside Diameter:2.77 mm / 0.109 inchesAllowable Ampacity:15 Amps at 60, 75, and 90 Degrees C
